Walking in a 3DGS Scene: Collision Support

LCC4Unreal supports dynamic collision data loading, so characters can move and interact freely in the 3DGS world.

Prerequisites

Collision relies on the collision file shipped with the data, and the requirements differ per format:

Format	Collision data	Support
`.lcc`	`collision.lci` in the data directory, `collision.bin` in older versions	Supported
`.lcc2`	`.ply` files in `data/mesh/` under the data directory	Supported
`.sog` / `.spz` / `.ply`	None	Not supported

The plugin checks in the order collision.lci → collision.bin → data/mesh/*.ply, and prints a warning and disables collision when none of them exist. After loading data, use HaveValidCollisionData() to confirm whether the current data contains usable collision data.

Note: collision.lci requires export from LCC Studio v1.6.1 or above; data exported by earlier versions uses collision.bin.

Alternatives for Single-file Formats

.sog, .spz, and .ply are single-file formats that carry no collision data, so the plugin cannot generate collision for them. Build it in the scene when collision is needed:

Blocking Volume: use engine blocking volumes to build the ground, walls, and other areas that need to block. Suited to regular shapes and the cheapest option
Approximate mesh: place a mesh that matches the 3DGS shape and enable its collision. Suited to scenes with complex shapes. This mesh can reuse the proxy mesh by changing its collision preset to block

Neither approach involves the LCC collision loading mechanism, so they are unaffected by CollisionLoadMaxDistance and are not swapped in and out as the camera moves.

Loading Mechanism

Collision data is stored in spatial chunks just like render data. The plugin does not load all collision at once: it loads only the chunks within a certain range around the camera and swaps them in and out dynamically as the camera moves.

Camera position changes
      │
      ▼
Compute the set of collision chunks that should be loaded in range
      │
      ▼
Compare with the previous set ── same ──▶ skip, do nothing
      │ different
      ▼
Load the new chunks → hand them to the physics system for baking → generate collision bodies

A few implementation points:

The load range is controlled by Max Load Collision Distance(m), and areas beyond that distance have no collision
The first load is synchronous, which prevents the character from falling through the ground before collision is ready; every later update is asynchronous and does not block the main thread
Updates are throttled, so collision is not rebuilt every frame while the camera moves continuously
Updates are skipped when the visible chunk set is unchanged, so small movements in place do not trigger a rebuild
Only the main camera is used for the calculation, and SceneCapture does not take part in collision loading

Advantages

Memory usage depends only on the load range, not on the total data size, so collision works even for large scenes
The number of collision bodies the physics system has to process stays under control and does not slow physics down as the scene grows

Costs and Mitigations

Issue	Cause	Mitigation
The character falls through the ground the instant the game starts	Collision is not built yet	Raise PlayerStart a little, or enable character movement only after collision is ready
Stutter when the character enters the 3DGS scene range from far away	The character spawned outside the collision load range; the first synchronous load is triggered on entry	Place the spawn point within the collision load range, or load all collision at once
No collision in the distance, so line traces miss	Areas beyond the load range have no collision bodies	Raise `Max Load Collision Distance(m)`, or switch to a check that does not rely on collision
No collision for a short time after teleporting or moving fast	The collision chunks of the new area are still loading	Load all collision at once
Stutter while moving, with a high `Update Collision` cost	Collision chunks are swapped in and out and rebaked frequently	Reduce the load range, or confirm collision is really needed
The navigation mesh keeps rebuilding when used with navigation	Collision changes trigger NavMesh updates	Raise the load range so the target area loads in one pass, and use Static baking, see Navigation System Support

Loading All Collision at Once

Most of the costs above come from swapping chunks in and out at runtime. When the scene size is limited and memory allows, raise Max Load Collision Distance(m) high enough to cover the whole scene, so all collision is built in one pass while the data loads.

Runtime swapping of collision chunks then disappears, and none of the earlier issues occur: falling through the ground, missing collision after teleporting, stutter while moving, and repeated navigation rebuilds. This is especially recommended when using the navigation system.

The cost is a longer load time at startup and a fixed memory usage equal to the collision of the whole scene. To judge whether it is feasible, check Collision Data Usage in stat xgrids and confirm the memory usage after a full load is acceptable.

Enabling

LCCComponent->SetLCCCollisionEnable(true);

Or tick bEnableCollision in the Details panel.

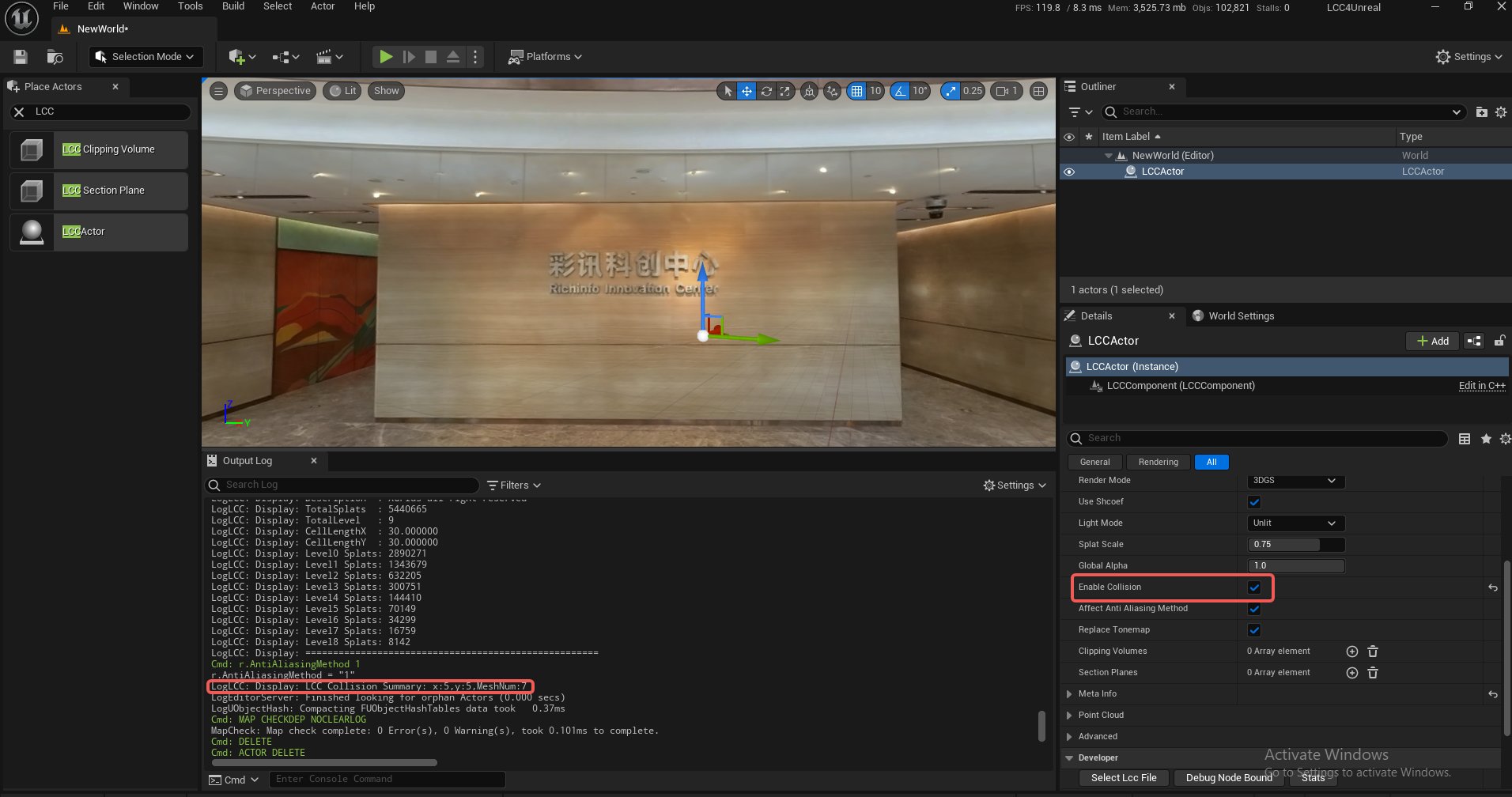

Enabling LCC collision in the Details panel

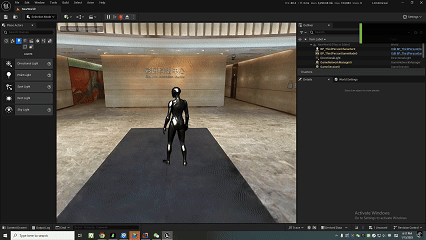

Dynamic collision of a character in an LCC scene

Verification

Use the view mode settings and select player collision or visibility collision to observe whether collision is enabled.

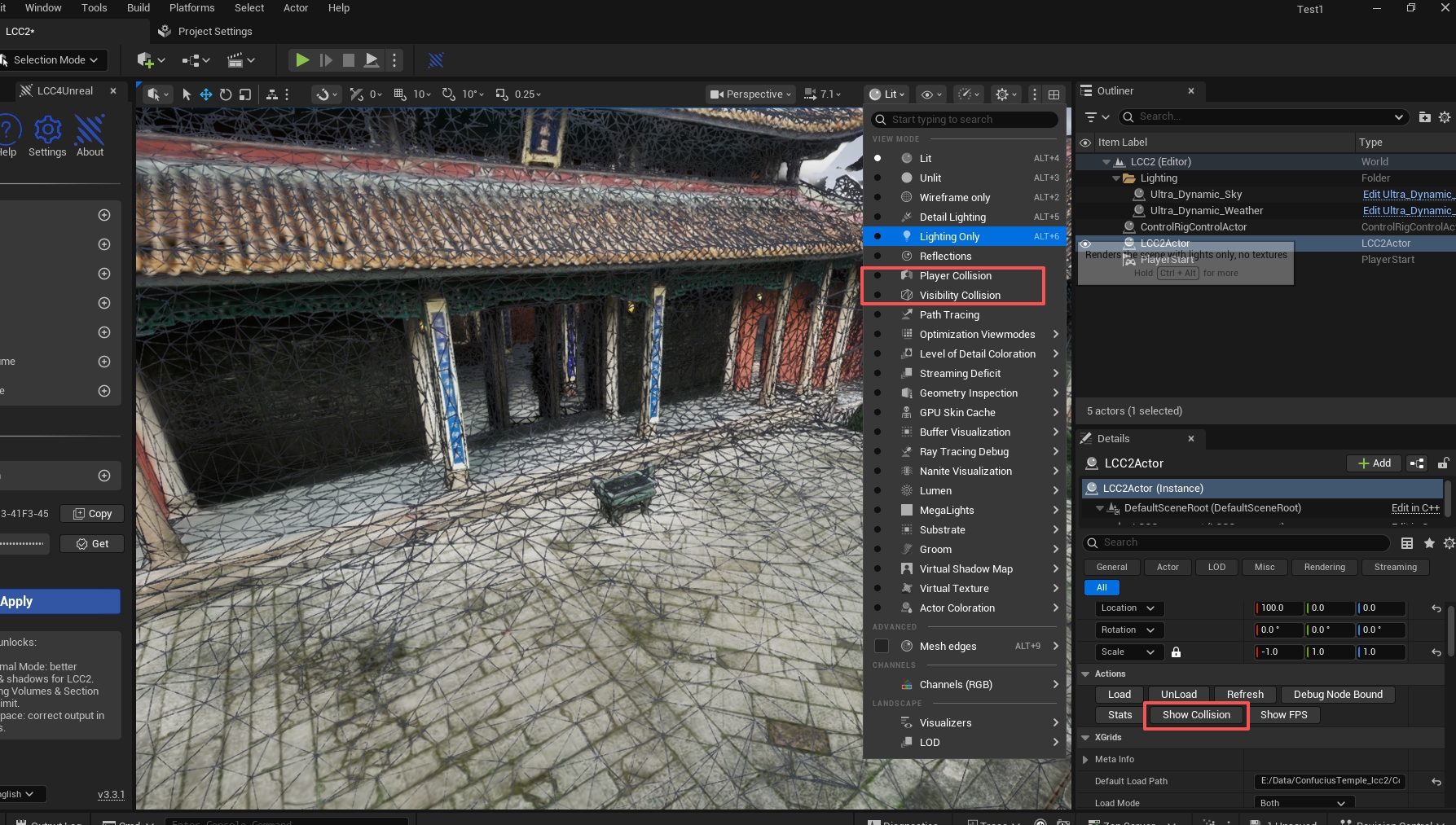

Verifying collision bodies with the player collision or visibility collision mode

Property	Description
bEnableCollision	Enables collision
CollisionLoadMaxDistance	Maximum load distance of collision data (300 meters by default)

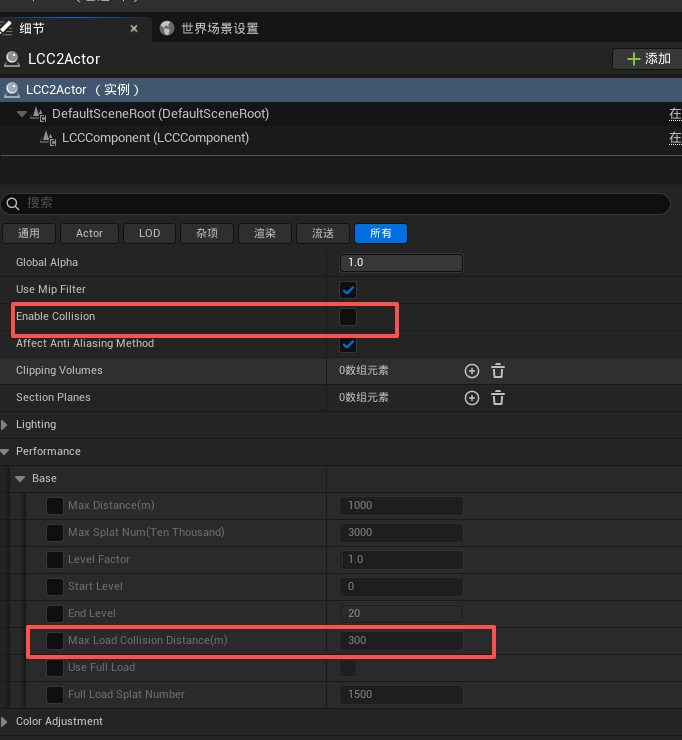

Collision enable and maximum load distance properties

Configuring the collision enable state and the maximum load distance

Notes

Once collision is enabled, the LineTrace of the Unreal Engine itself can be used for ray tests against collision bodies, and the test range is limited by the load range as well
The memory used by collision data can be viewed in Collision Data Usage of stat xgrids, the update cost in Update Collision, and the meaning of the items in Performance Parameters
