Annotation

The Annotation tool is used to add clickable annotation points in the scene. Annotation content includes title, body text, media, and links. Annotations support two types: Display Annotation and Jump Annotation.

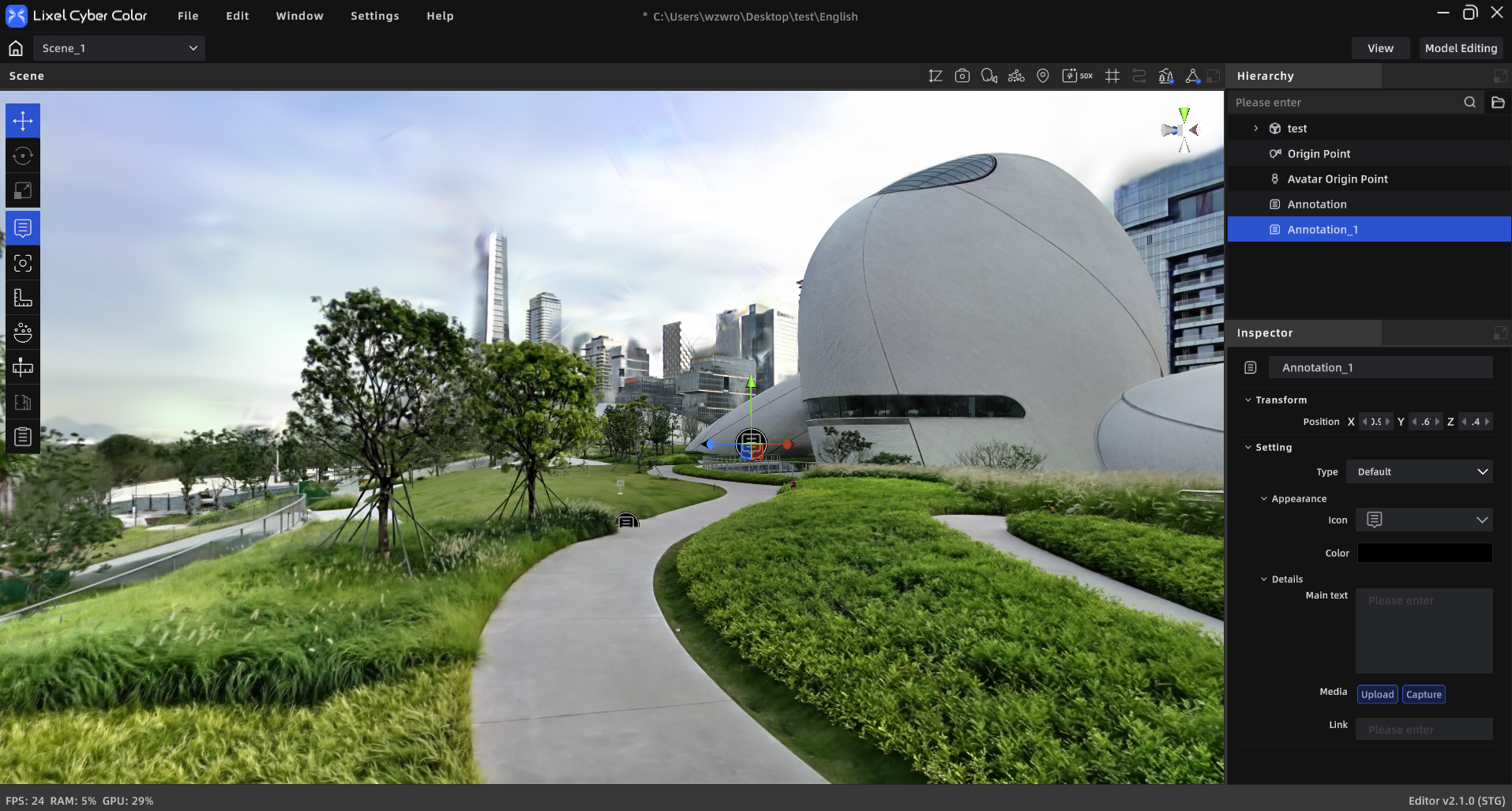

Annotation

Workflow

Adding Annotation Points

1. Click "Annotation" in the toolbar to enter annotation mode
2. Single-click on the target model surface to place an annotation point
3. Select the annotation type: Display Annotation / Jump Annotation
4. Fill in annotation content in the Property panel
5. Click "Annotation" in the toolbar again to exit annotation mode

Display Annotation

• Customize icon style/color
• Enter title (required, ≤50 characters)
• Enter body text (≤1000 characters)
• Add media:
  • Snapshot method: Click the snapshot button → roam to adjust the view → click capture (up to 5 photos)
  • File upload: Click the [+] in the media area; supports jpeg/png/mp4, up to 5 files, max 500MB each
• Add link: Paste a URL in the "Link" input field

Jump Annotation

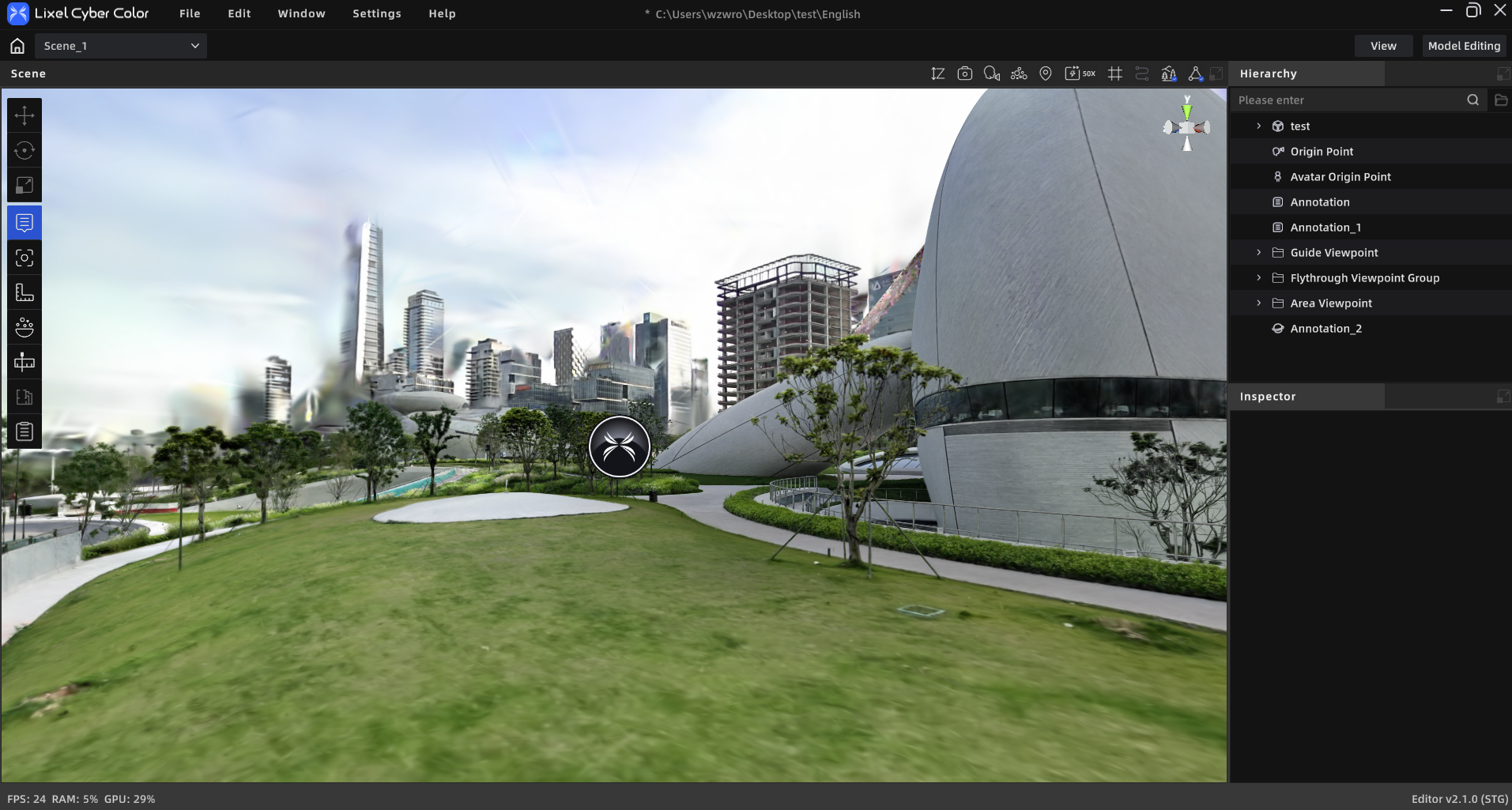

Jump Annotation

• Enter title (required, ≤50 characters)
• Select jump target: Choose an existing scene from the scene list, or add a new scene from local storage

Editing and Management

Editing Annotations

• Click an annotation in the Assets list or in the 3D scene
• The Property panel directly displays the annotation's editable content (title, body text, media, links, etc.)
• Edit directly in the Property panel without opening a separate editing panel
• Drag annotation points in the 3D view to adjust their position

Deleting Annotations

• Select an annotation in the 3D view or Assets list
• Press Delete to remove, or right-click → "Delete"

Visibility Control

• Use the "eye" icon on annotation entries in the Assets list to control individual annotation visibility
• The "Annotation" toolbar button only serves as a creation entry point and does not control overall annotation visibility
